GATES G31150-2502 Part Description
Manufacturer
Product Description

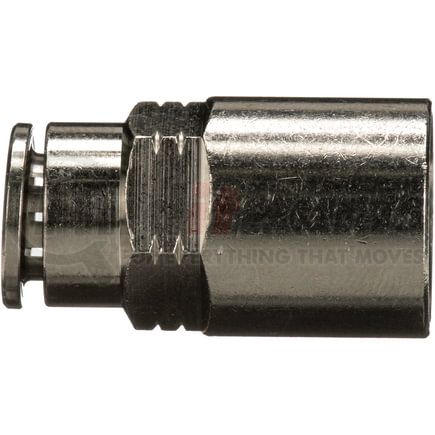

Air Brake to Female Pipe (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31150-2502 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake to Female Pipe |
| Industrial Description | 2.5AB-2FP |
| Thread Size | 1/8-27 |
| Outside Diameter | .156 IN |
| Stem Hex Size | .5625 IN |
| Length | 1.18 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Product Note | Not D.O.T. Certified Nor Recognized for Air Brake Systems |
| Length | 30 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7412200085 |
| Country of Origin (Primary) | US |
| UPC | 00029769205624 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
GATES G31150-2502 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G31150-2502 |
| IMI Norgren | 12-426-0218 |
GATES G31150-2502 Cross References
We have 1 alternatives for the G31150-2502 by GATES:
