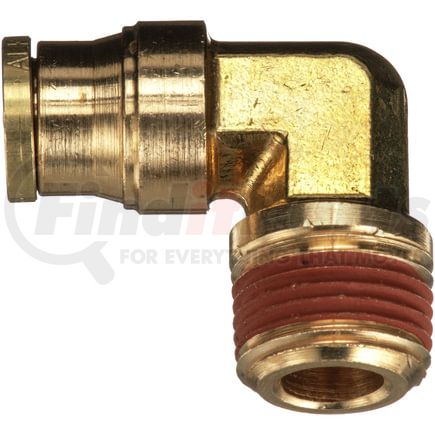

Gates G31104-1008 - Air Brake to Male Pipe - 90 (SureLok)
$12245
Package Price for 5 Units
@ $24.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Air Brake to Male Pipe - 90 (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
Product Attributes
| Coupling Description | SureLok Air Brake to Male Pipe - 90 |
| Industrial Description | 10AB-8MP90 |
| Thread Size | 1/2-14 |
| Outside Diameter | .625 IN |
| 9924 | 30 MM |
| Drop Length | 1.42 IN |
| Length | 1.54 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| 1874 | 36.1 MM |
| Length | 39.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| UPC | 00029769155226 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
Part Interchanges
