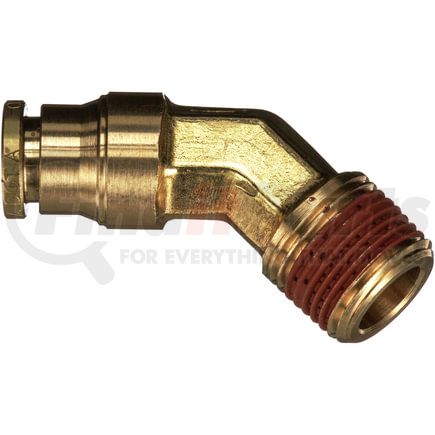

(888) 312-8812 Login SignupGATES G31102-0606 Air Brake to Male Pipe - 45 (SureLok)
Tap to view 2 more
SHIPS MONDAY
MSRP: $34.34
$1649
Save $17.85
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G31102-0606 Part Description
Manufacturer
Product Description
Air Brake to Male Pipe - 45 (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31102-0606 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake to Male Pipe - 45 |
| Industrial Description | 6AB-6MP45 |
| Thread Size | 3/8-18 |
| Outside Diameter | .375 IN |
| Nut Hex Size | 19 MM |
| Drop Length | 1.12 IN |
| Length | 2.22 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Drop Length | 28.5 MM |
| Length | 56.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| UPC | 00029769157176 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
GATES G31102-0606 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 179PMTNS-6-6 |
| Weatherhead | 1880X6X6 |
| Alkon Corp | AQ54-DOT-6X6 |
| Lawson | 27197 |
| NAPA | G31102-0606 |
| IMI Norgren | 95 460 020 |
GATES G31102-0606 Cross References
We have 1 alternatives for the G31102-0606 by GATES:
