(888) 312-8812 Login SignupGATES G25913-1010 Female Komatsu Style Japanese Metric Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
SHIPS TODAY
$6949
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
GATES G25913-1010 Part Description
Manufacturer
Product Description

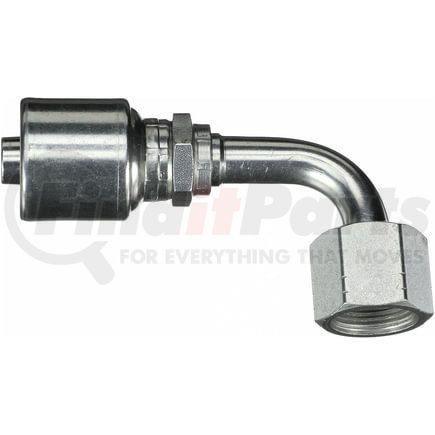

Female Komatsu Style Japanese Metric Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25913-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Komatsu Style Japanese Metric Swivel - 90 Bent Tube |
| Industrial Description | 10G-10FKX90 |
| Thread Size | M24X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .938 IN |
| Nut Hex Size | 1.25 IN |
| Drop Length | 2.57 IN |
| Cut-Off Length | 1.95 IN |
| Length | 3.43 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| SAE or Metric Threads | Metric |
| Inside Diameter | 15.9 MM |
| Nut Hex Size | 31.75 MM |
| Drop Length | 65.3 MM |
| Cut-Off Length | 49.5 MM |
| Length | 87 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00770075141136 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25913-1010 Part Interchanges
| Brand | Part Number |
|---|---|
| Goodyear | 14550-1024, B2-KMFX90-1024 |
| NAPA | G25913-1010 |
