(888) 312-8812 Login SignupGATES G25910-0404 CL12-4G-4FKX
Tap to view 3 more
$1649
Limited availability at this price!
In Stock
Get it by Monday, Feb 16
GATES G25910-0404 Part Description
Manufacturer
Product Description

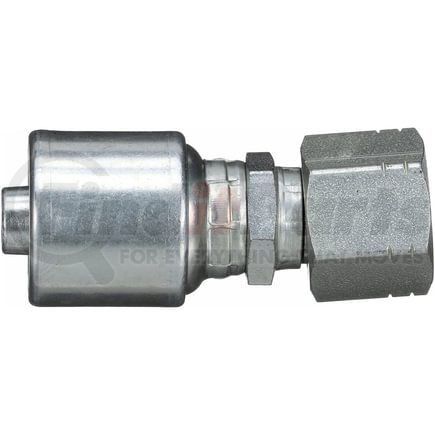

Female Komatsu Style Japanese Metric Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25910-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
| Industrial Description | 4G-4FKX |
| Thread Size | M14X1.5 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 14 MM |
| Nut Hex Size | 19 MM |
| Cut-Off Length | 1.33 IN |
| Length | 2.35 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| SAE or Metric Threads | Metric |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 33.7 MM |
| Length | 59.7 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053173109 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25910-0404 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A4KF4 |
| Dayco | 134000 |
| Goodyear | 13545-0414, 14545-0414, B2-KMFX-0414, UC-KMFX-0414 |
| Kurt Hydraulics | F-KOMX-04-14 |
| N/A | 04032799, M24011-04-14 |
| NAPA | G25910-0404 |
| Parker | 1MU43-04-04, 1MU43-4-4 |
| Weatherhead | 04U14K, 04Z14K, 04U-14K, 04Z-14K |
