GATES G25845-0808 Part Description
Manufacturer
Product Description

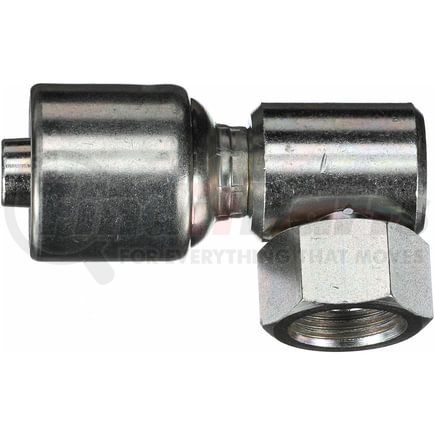

Female British Standard Parallel Pipe O-Ring Swivel - 90 Block (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25845-0808 Specifications
Product Attributes
| Bent Tube Angle | 90 Block |
| Swivel | Yes |
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Block |
| Industrial Description | 8G-8FBSPORX90BL |
| Thread Size | 1/2-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 27 MM |
| Drop Length | .94 IN |
| Cut-Off Length | .93 IN |
| Length | 2.4 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Inside Diameter | 12.7 MM |
| Drop Length | 24 MM |
| Cut-Off Length | 23.5 MM |
| Length | 61 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053676204 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25845-0808 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 1B443-8-8 |
| Dayco | 116290 |
| NAPA | G25845-0808 |
