GATES G25830-0608 Part Description
Manufacturer
Product Description

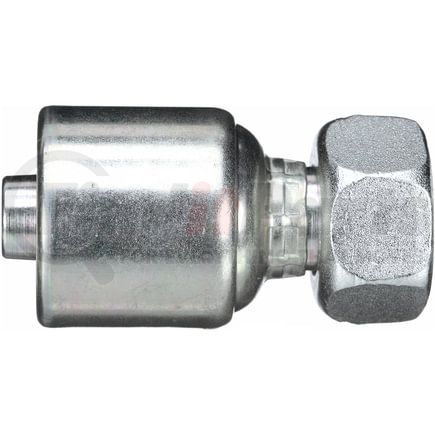

Female British Standard Parallel Pipe O-Ring Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25830-0608 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel |
| Industrial Description | 6G-8FBSPORX |
| Thread Size | 1/2-14 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 27 MM |
| Cut-Off Length | .7 IN |
| Length | 2.15 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 17.9 MM |
| Length | 54.7 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053401233 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25830-0608 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A8BF6 |
| Dayco | 116033, HY06-08BPF |
| Goodyear | 13105-0608, 14105-0608, B2-BPFX-0608, T7-BPFX-0608, T8-BPFX-0608, UC-BPFX-0608 |
| Kurt Hydraulics | F-BSPX-06-08 |
| N/A | 04032745, M20513-06-08 |
| NAPA | G25830-0608 |
| Parker | 19243-8-6, 1GUHY-8-6, 1GU43-8-6 |
| Weatherhead | 06E358, 06EA28, 06EE358, 06EEA28, 06U358, 06Z358, 06E-358, 06U-358, 06Z-358 |
