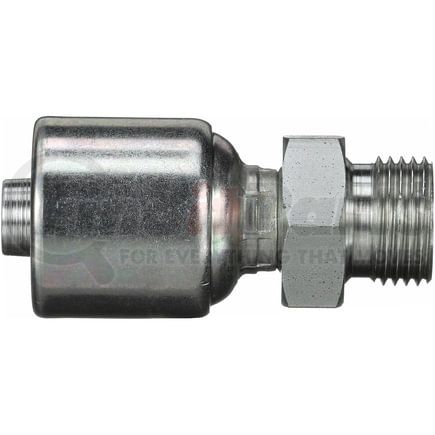

(888) 312-8812 Login SignupGATES G25810-0404 CL12-4G-4MBSPP
Tap to view 3 more
$2099
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
GATES G25810-0404 Part Description
Manufacturer
Product Description
Male British Standard Parallel Pipe (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25810-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male British Standard Parallel Pipe |
| Industrial Description | 4G-4MBSPP |
| Thread Size | 1/4-19 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 19 MM |
| Cut-Off Length | 1.02 IN |
| Length | 2.04 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 25.9 MM |
| Length | 51.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053173239 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25810-0404 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1A4BP4 |
| Parker | 1D943-04-04, 1D943-4-4, 1D9HY-4-4 |
| Dayco | 116005 |
| Weatherhead | 04UP54, 04ZP54 |
| Goodyear | 14130-0404, B2-BPM-0404, UC-BPM-0404 |
| NAPA | G25810-0404 |
| Kurt Hydraulics | M-BSPP-04-04 |
| Hydraulink | S12-0404 |
