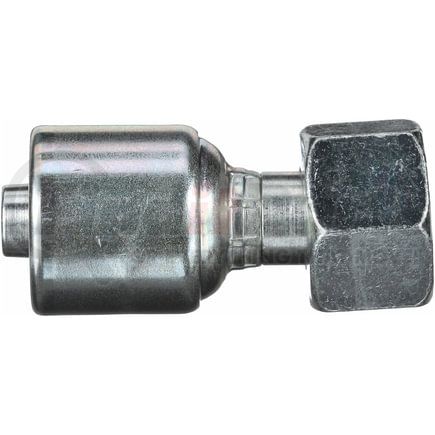

Gates G25720-0410 - Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
$2899
MSRP: $34.72
Save: $5.73
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Industrial Description | 4G-10FDHORX |
| Thread Size | M18X1.5 |
| Inside Diameter | .25 IN |
| 9952 | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 10 MM |
| 9923 | 22 MM |
| 9929 | 1.15 IN |
| Length | 2.06 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| 9927 | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Heavy |
| Gender | Female |
| 9934 | Straight |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| 9929 | 29.3 MM |
| Length | 52.2 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053206135 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1A6DS4
- Parker 1C643-10-04
- Parker 1C943-10-04
- Parker 1C943-10-4
- Dayco 101717
- Dayco 116152
- Weatherhead 04U60C
- Weatherhead 04Z60C
- Caterpillar 124-2254
- Goodyear 13210-0418
- Goodyear 14210-0418
- Goodyear B2-DHFX-0418
- Goodyear UC-DHFX-0418
- NAPA G25720-0410
- Kurt Hydraulics F-DINHX-04-18
- Kurt Hydraulics M-DINHX-04-18
