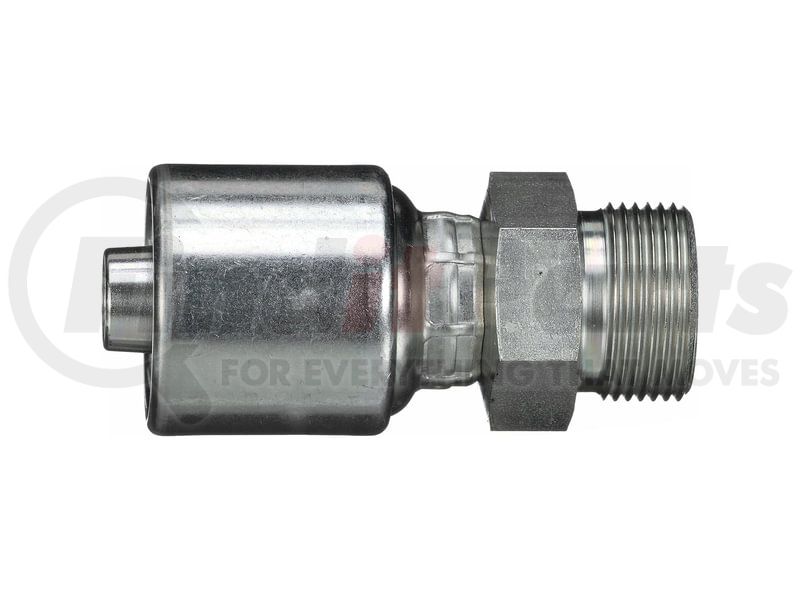

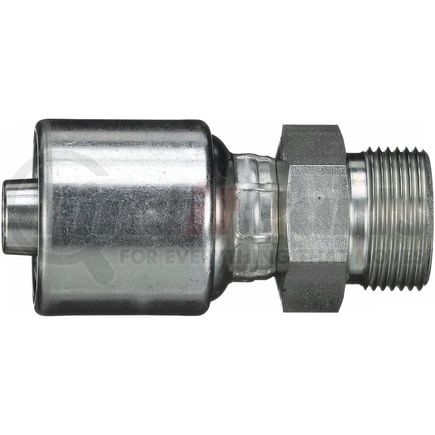

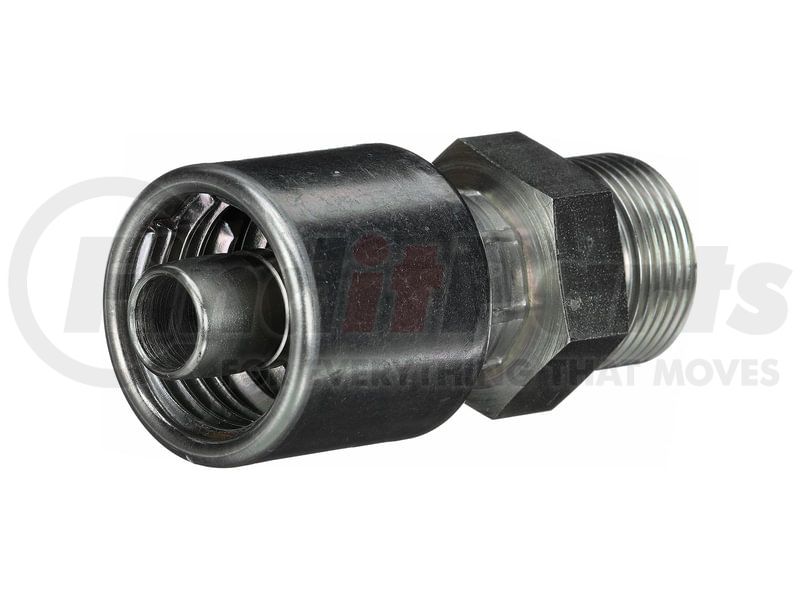

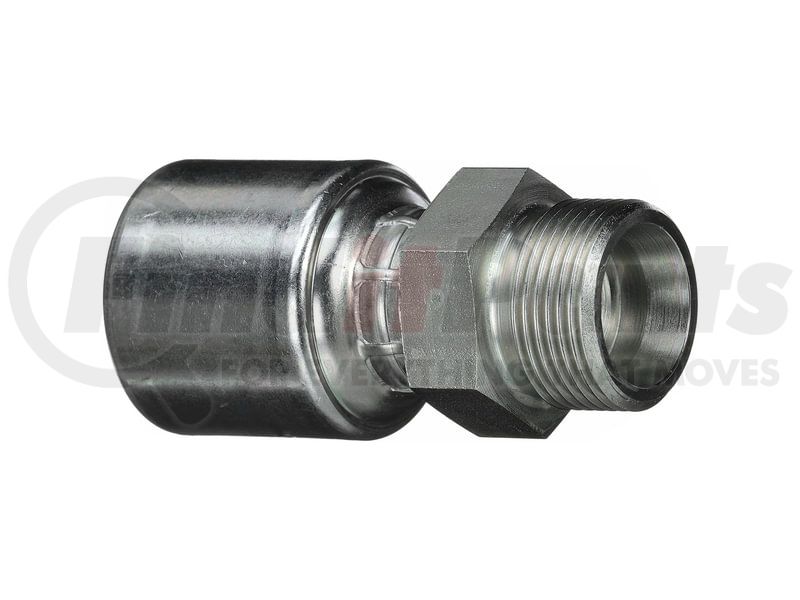

Name: Gates G25715-0614 CL12-6G-14MDH
SKU: g257150614
Price: 62.49 USD
Availability: InStock

GATES G25715-0614 Part Description

Male DIN 24 Cone - Heavy Series (MegaCrimp)

Robust "bite-the-wire" crimp
Robust “bite-the-wire” crimp
Tested to an industry-leading 1,000,000 impulse cycles
Simplifies inventory management
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard

GATES G25715-0614 Specifications

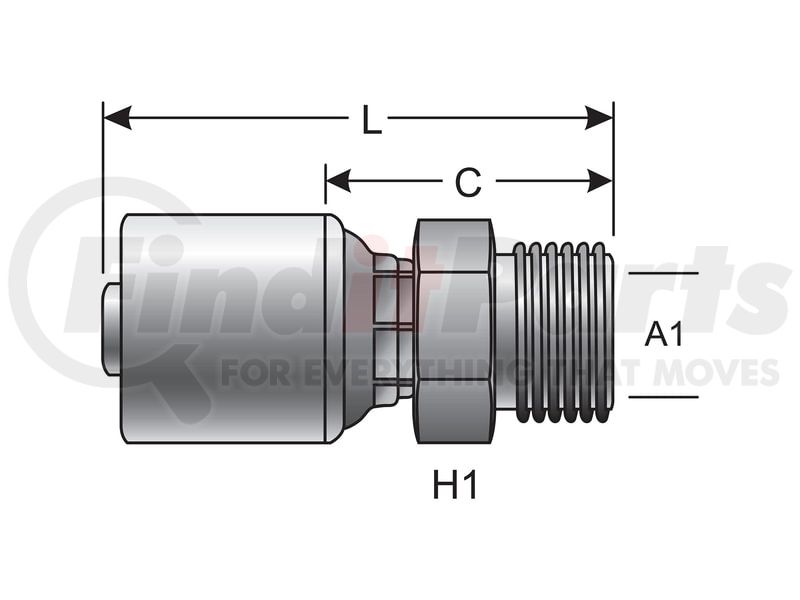

Coupling Description	MegaCrimp Male DIN 24 Cone - Heavy Series
Industrial Description	6G-14MDH
Thread Size	M22X1.5
Inside Diameter	.375 IN
Hydraulic Hose Recommendation	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter	14 MM
Stem Hex Size	24 MM
Cut-Off Length	1.24 IN
Length	2.34 IN
Seal Type	Mated Angle w/O-Ring
Termination	DIN
O-Ring Location	On Female w/Inverted Nose Seat
Seat Angle	24
DIN Series	Heavy
Gender	Male
Bent Tube Angle	Straight
Swivel	No
Inside Diameter	9.5 MM
Cut-Off Length	31.6 MM
Length	59.5 MM

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8412909015
UPC	00072053206517
VMRS Code	059032012
UNSPSC	31163000
