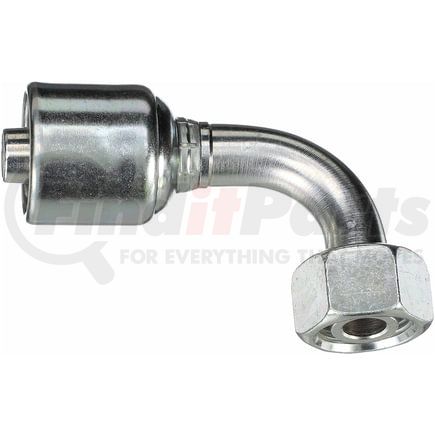

Gates G25655-1018 - Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)
$8899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 90 Bent Tube |
| Industrial Description | 10G-18FDLORX90 |
| Thread Size | M26X1.5 |
| Inside Diameter | .625 IN |
| 9952 | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 18 MM |
| 9923 | 32 MM |
| Drop Length | 2.03 IN |
| 9929 | 1.88 IN |
| Length | 3.04 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| 9927 | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| 9934 | 90 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| 1874 | 51.5 MM |
| 9929 | 47.8 MM |
| Length | 77.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053435818 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
