GATES G25655-0408 Part Description
Manufacturer
Product Description

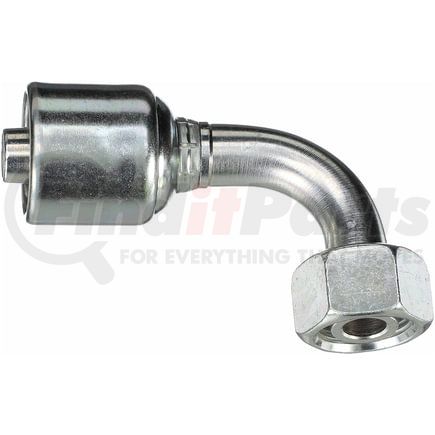

Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25655-0408 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 90 Bent Tube |
| Industrial Description | 4G-8FDLORX90 |
| Thread Size | M14X1.5 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 8 MM |
| Nut Hex Size | 17 MM |
| Drop Length | 1.38 IN |
| Cut-Off Length | 1.24 IN |
| Length | 2.36 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Drop Length | 35 MM |
| Cut-Off Length | 31.5 MM |
| Length | 60 MM |
Additional Information
| Country of Origin (Primary) | CZ |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053401431 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25655-0408 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A6DLB4 |
| Caterpillar | 124-2222 |
| Dayco | 101761, 116330, HY04-08RU14A90T |
| Goodyear | 13250-0414, 13280-0414, 14250-0414, 14280-0414, B2-DLFX90-0414, UC-DLFX90-0414 |
| Kurt Hydraulics | F-DINLX90-04-14 |
| N/A | 04032588, M21593-04-14 |
| NAPA | G25655-0408 |
| Parker | 1C543-08-04, 1C543-8-4, 1CF43-8-4 |
| Weatherhead | 04U58D, 04Z58D, 04U-58D, 04Z-58D |
