GATES part description

Product Description

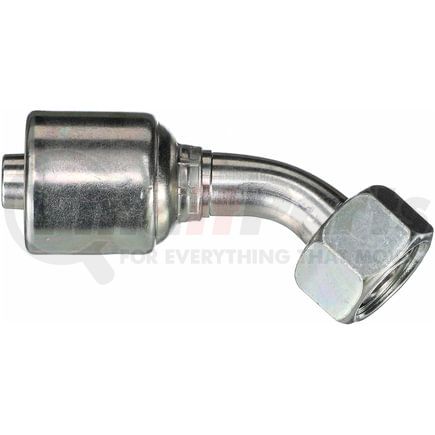

Female DIN 24 Cone Swivel - Light Series with O-Ring - 45 Bent Tube (MegaCrimp)

Features & Benefits

  • Robust "bite-the-wire" crimp
  • Robust “bite-the-wire” crimp
  • Tested to an industry-leading 1 million impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Product Attributes

Coupling Description MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 45 Bent Tube
Industrial Description 5G-10FDLORX45
Thread Size M16X1.5
Inside Diameter .3125 IN
9952 Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter 10 MM
9923 19 MM
Drop Length .67 IN
9929 1.55 IN
Length 2.5 IN
Seal Type Mated Angle w/O-Ring
Termination DIN
9927 On Female w/Inverted Nose Seat
Seat Angle 24
DIN Series Light
Gender Female
9934 45
Swivel Yes
Inside Diameter 7.9 MM
1874 17.1 MM
9929 39.3 MM
Length 63.4 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 7326908688
UPC 00072053578300
VMRS Code 059032012
UNSPSC 31163000
