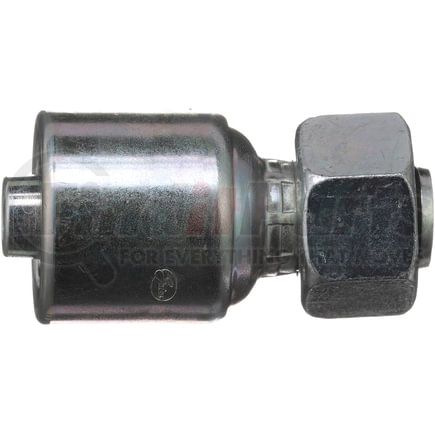

(888) 312-8812 Login SignupGATES G25645-2035 Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Tap to view 3 more
$17899
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 14
GATES G25645-2035 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25645-2035 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 20G-35FDLORX |
| Thread Size | M45X2.0 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 35 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 1.74 IN |
| Length | 3.56 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 44.1 MM |
| Length | 90.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053206128 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25645-2035 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 1CA43-35-20 |
| Weatherhead | 20U35C, 20Z35C |
| Goodyear | UC-DLFX-2045 |
| NAPA | G25645-2035 |
