GATES G25615-1222 Part Description
Manufacturer
Product Description

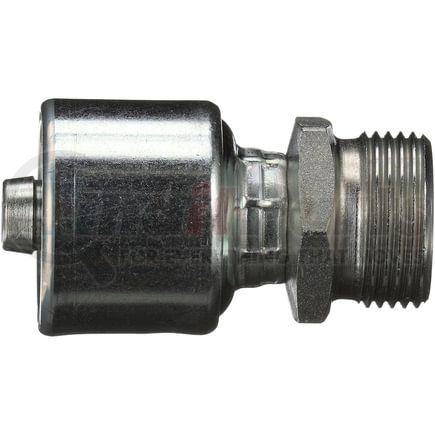

Male DIN 24 Cone - Light Series (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25615-1222 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male DIN 24 Cone - Light Series |
| Industrial Description | 12G-22MDL |
| Thread Size | M30X2.0 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 22 MM |
| Stem Hex Size | 32 MM |
| Cut-Off Length | 1.14 IN |
| Length | 3.27 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 19.1 MM |
| Cut-Off Length | 29 MM |
| Length | 83 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053206074 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25615-1222 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1A20DK12 |
| Parker | 1D043-22-12 |
| Dayco | 101796, 116135 |
| Weatherhead | 12U22A, 12Z22A |
| Goodyear | 14255-1230, B2-DLM-1230, UC-DLM-1230 |
| NAPA | G25615-1222 |
| Kurt Hydraulics | M-DINLX-12-30 |
