GATES G25510-0404 Part Description
Manufacturer
Product Description

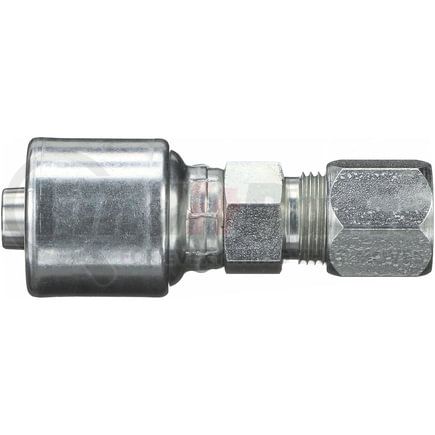

SAE Male Flareless Assembly (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25510-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Flareless Assembly |
| Industrial Description | 4G-4MFA |
| Thread Size | 7/16-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .5 IN |
| Nut Hex Size | .5625 IN |
| Cut-Off Length | 1.06 IN |
| Length | 2.09 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 24 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 27 MM |
| Length | 53 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053173291 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25510-0404 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 108150 |
| Goodyear | 13360-0404, 14360-0404, B2-FTM-0404, UC-FTM-0404 |
| Kurt Hydraulics | MT-04-04 |
| NAPA | G25510-0404 |
| Parker | 11143-04-04, 11143-4-4, 111HY-4-4 |
| Weatherhead | 04U754, 04Z754 |
