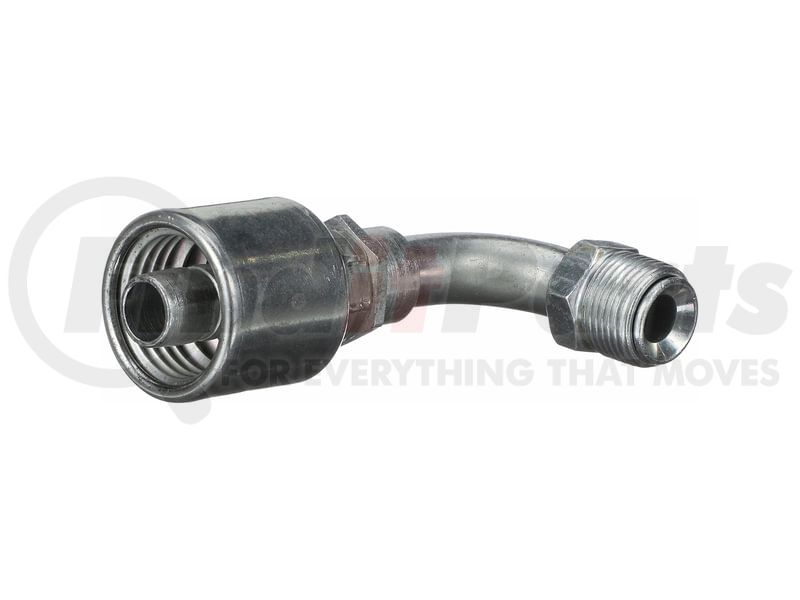

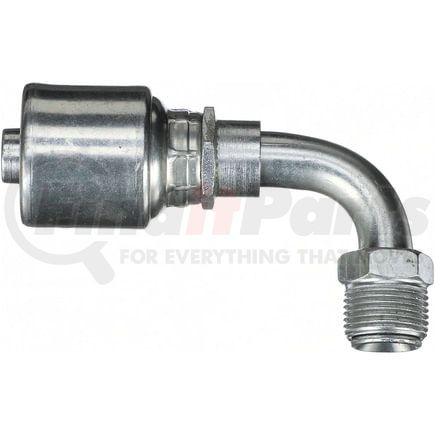

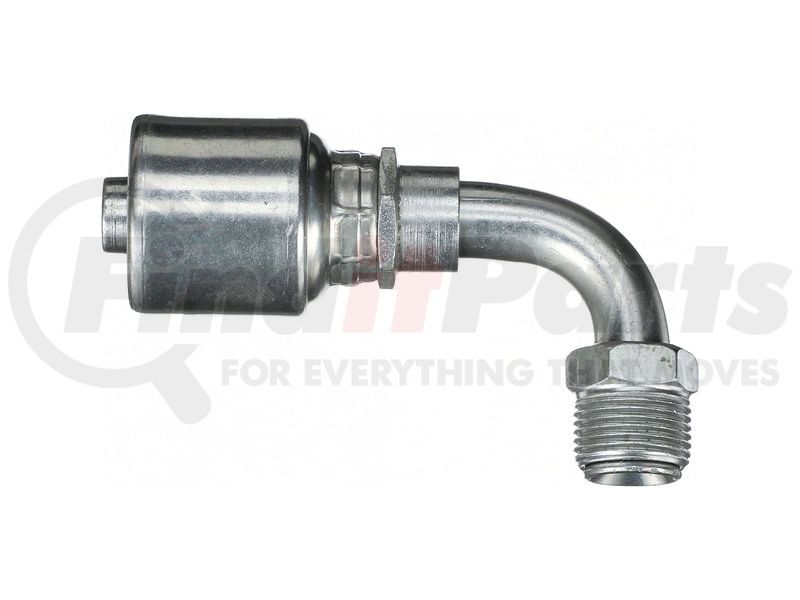

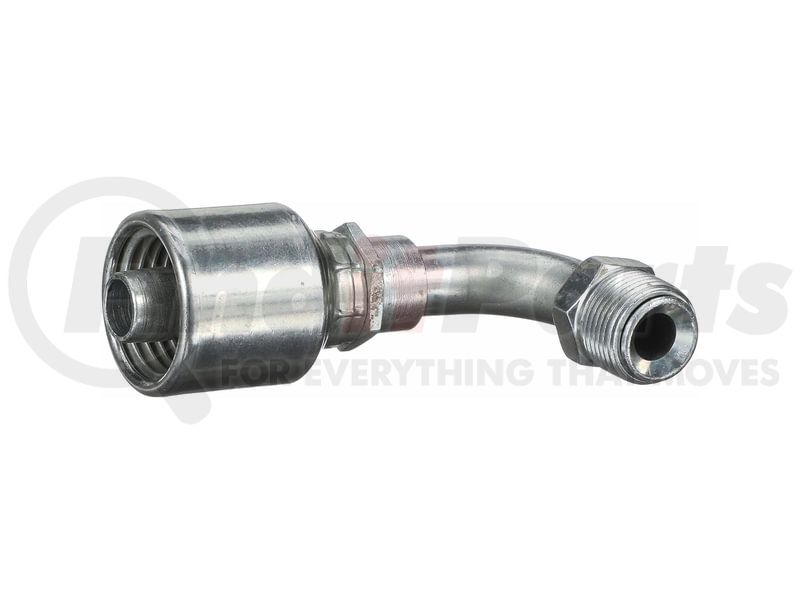

(888) 312-8812 Login SignupGATES G25504-0604 SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
MSRP: $86.57
$6949
Save $17.08
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 6
GATES G25504-0604 Part Description
Manufacturer
Product Description
SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25504-0604 Specifications
Product Attributes

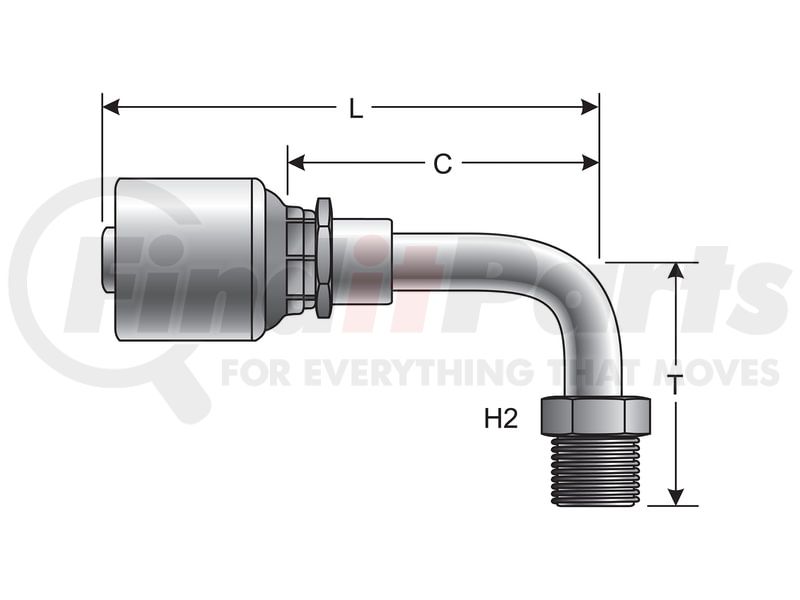

| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Industrial Description | 6G-4MIX90 |
| Thread Size | 7/16-24 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .4375 IN |
| Drop Length | 1.38 IN |
| Cut-Off Length | 1.34 IN |
| Length | 2.44 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Drop Length | 35.1 MM |
| Cut-Off Length | 34.1 MM |
| Length | 62 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053285017 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25504-0604 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 16943-04-06, 16943-4-6, 169HY-4-6 |
| Dayco | 108468 |
| Weatherhead | 06UB64, 06ZB64 |
| Goodyear | 14815-0604, B2-SIMX90-0604, B2SIMX900604 |
| NAPA | G25504-0604 |
