GATES G25314-2020 Part Description
Manufacturer
Product Description

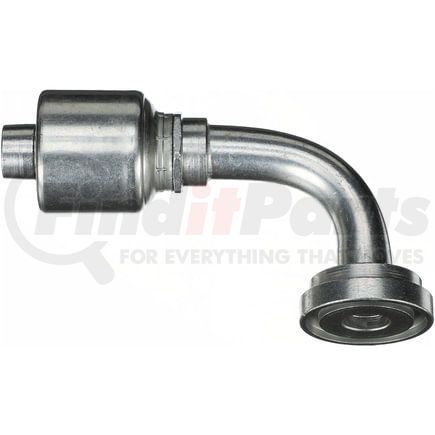

Code 61 O-Ring Flange - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25314-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 20G-20FL90S |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Drop Length | 2.68 IN |
| Cut-Off Length | 3.9 IN |
| Length | 6.22 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Code 61 |
| Bent Tube Angle | 90 |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Drop Length | 68 MM |
| Cut-Off Length | 99.1 MM |
| Length | 158.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053980233 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25314-2020 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 109498 |
| Weatherhead | 20UG80, 20ZG80 |
| NAPA | G25314-2020 |
