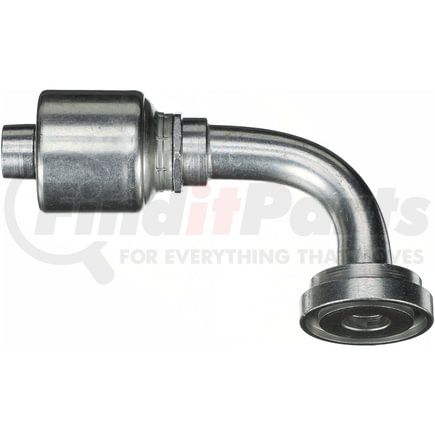

Gates G25314-1624 - Code 61 O-Ring Flange - 90 Bent Tube (MegaCrimp)
$10949
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 16G-24FL90S-081 |
| Inside Diameter | 1 IN |
| 9952 | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Drop Length | 3.19 IN |
| 9929 | 3.34 IN |
| Length | 5.57 IN |
| Seal Type | O-Ring |
| 9927 | Flange Groove |
| Termination | Code 61 |
| 9934 | 90 |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| 1874 | 81 MM |
| 9929 | 84.8 MM |
| Length | 141.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053903010 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
