GATES G25309-1616 Part Description
Manufacturer
Product Description

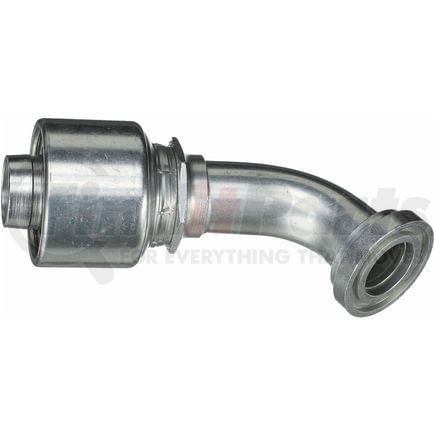

Code 61 O-Ring Flange - 60 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25309-1616 Specifications
Product Attributes
| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 60 Bent Tube |
| Industrial Description | 16G-16FL60M |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Drop Length | 1.73 IN |
| Cut-Off Length | 3.61 IN |
| Length | 5.85 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Code 61 |
| Bent Tube Angle | 60 |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
| Drop Length | 44 MM |
| Cut-Off Length | 91.7 MM |
| Length | 148.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053979633 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25309-1616 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 12743-16-16 |
| Dayco | 149556 |
| Weatherhead | 16ZH53 |
| Goodyear | 14345-1616, B2-FL60-1616, UC-FL60-1616 |
| NAPA | G25309-1616 |
