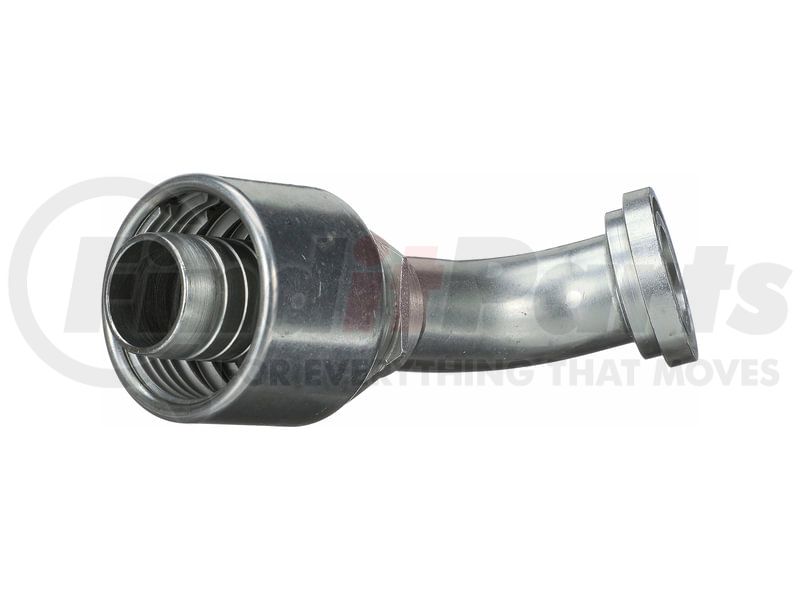

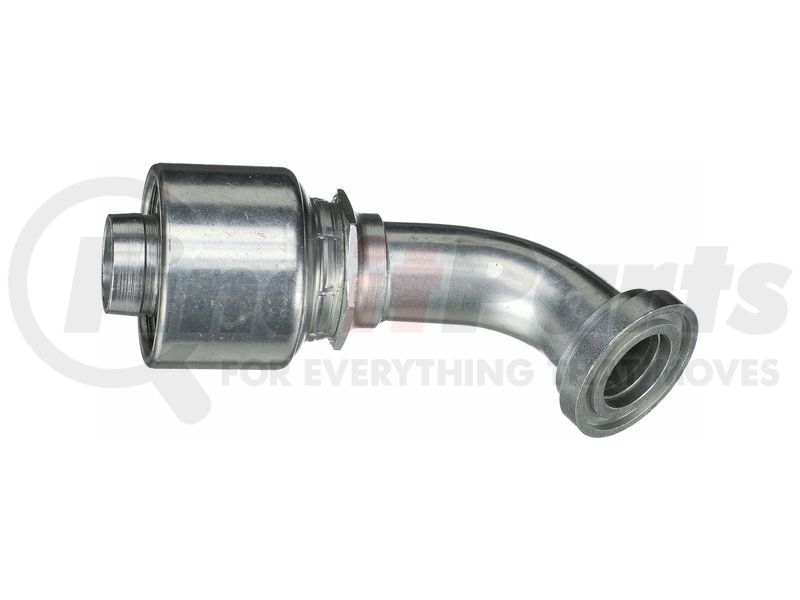

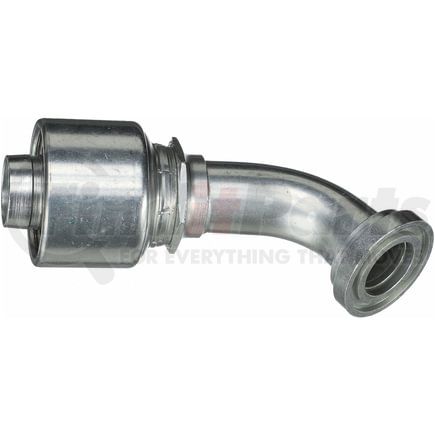

(888) 312-8812 Login SignupGATES G25309-1212 Code 61 O-Ring Flange - 60 Bent Tube (MegaCrimp)
Tap to view 3 more
$7749
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
GATES G25309-1212 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 60 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25309-1212 Specifications
Product Attributes

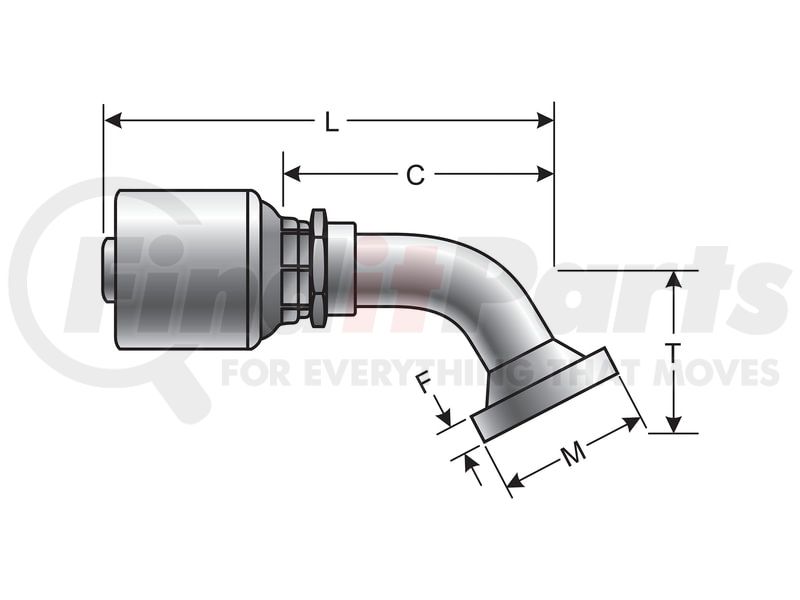

| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 60 Bent Tube |
| Industrial Description | 12G-12FL60M |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .27 in |
| Flange Diameter | 1.5 IN |
| Drop Length | 1.46 IN |
| Cut-Off Length | 3.03 IN |
| Length | 5.04 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Code 61 |
| Bent Tube Angle | 60 |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 38.1 MM |
| Drop Length | 37 MM |
| Cut-Off Length | 77 MM |
| Length | 128 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053408485 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25309-1212 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 12743-12-12 |
| Dayco | 149555 |
| Goodyear | 14345-1212, B2-FL60-1212, UC-FL60-1212 |
| NAPA | G25309-1212 |
