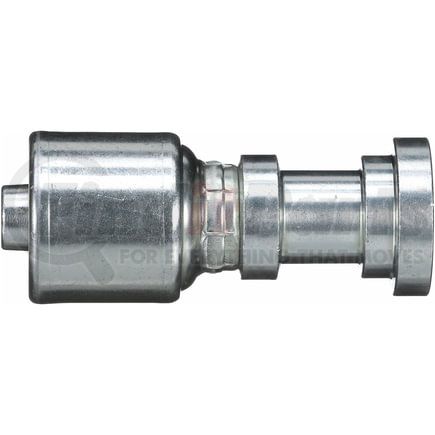

(888) 312-8812 Login SignupGATES G25300-2024 Code 61 O-Ring Flange (MegaCrimp)
Tap to view 3 more
$13249
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
GATES G25300-2024 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25300-2024 Specifications
Product Attributes
| Coupling Description | MegaCrimp Code 61 O-Ring Flange |
| Industrial Description | 20G-24FL |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Cut-Off Length | 2.3 IN |
| Length | 4.63 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Code 61 |
| Bent Tube Angle | Straight |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| Cut-Off Length | 58.5 MM |
| Length | 117.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053408898 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25300-2024 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AT24FL20 |
| Parker | 11543-24-20 |
| Dayco | 109420 |
| Weatherhead | 20UG24, 20ZG24 |
| Goodyear | UC-FL-2024 |
| NAPA | G25300-2024 |
