GATES part description

Product Description

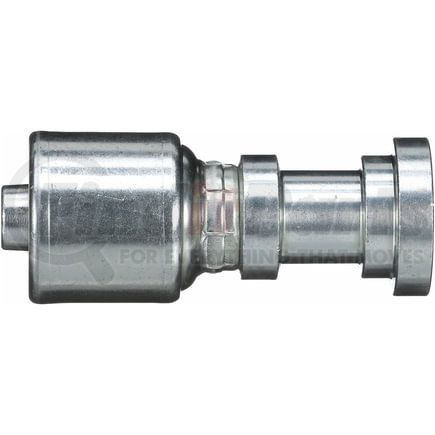

Code 61 O-Ring Flange (MegaCrimp)

Features & Benefits

  • Robust "bite-the-wire" crimp
  • Robust “bite-the-wire” crimp
  • Tested to an industry-leading 1 million impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Product Attributes

Coupling Description MegaCrimp Code 61 O-Ring Flange
Industrial Description 20G-20FL
Inside Diameter 1.25 IN
9952 Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Flange Thickness .32 in
Flange Diameter 2 IN
9929 2.11 IN
Length 4.43 IN
Seal Type O-Ring
9927 Flange Groove
Termination Code 61
9934 Straight
Inside Diameter 31.8 MM
Flange Thickness 8.1 MM
Flange Diameter 50.8 MM
9929 53.5 MM
Length 112.5 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 7326908688
UPC 00072053172249
VMRS Code 059032012
UNSPSC 31163000
