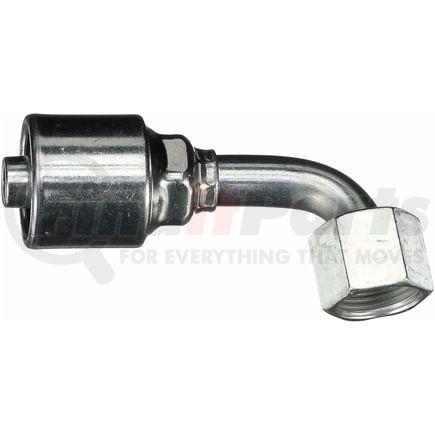

(888) 312-8812 Login SignupGATES G25239-1616 Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
$9749
Limited availability at this price!
In Stock
Get it by Monday, Feb 16
GATES G25239-1616 Part Description
Manufacturer
Product Description
Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25239-1616 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 16G-16FFORX90S |
| Thread Size | 1 7/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 41 MM |
| Drop Length | 2.2 IN |
| Cut-Off Length | 2.88 IN |
| Length | 5.11 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 25.4 MM |
| Drop Length | 56 MM |
| Cut-Off Length | 73.1 MM |
| Length | 129.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053173536 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25239-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1GA16FRB16, 1AA16FRB16, FJ9893-1616S |
| Caterpillar | 124-2155 |
| Dayco | 108790, 149457, HY16-16OF90T |
| Eaton | 16Z-A36 |
| Goodyear | 14725-1616, B2-OFFX90S-1616, UC-OFFX90S-1616 |
| N/A | 04032371, E16-16FF90S, M22493-16-16, M24493-16-16 |
| NAPA | G25239-1616 |
| Parker | 1J943-16-16, 1J9HY-16-16, 1J9HY-16-16-SM |
| Weatherhead | 16UA36, 16ZA36, 16W-A36, 16U-A36 |
