Name: Gates G25235-0606 CL12-6G-6FFORX4
SKU: g252350606
Price: 27.99 USD
Availability: InStock

GATES G25235-0606 Part Description

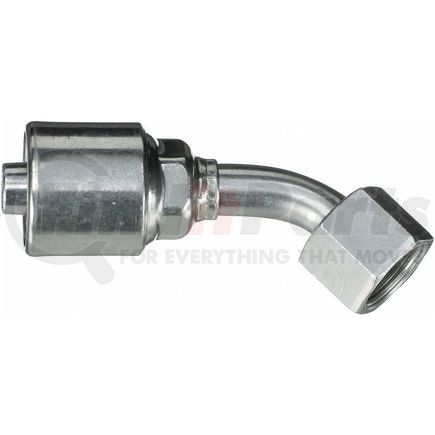

Female Flat-Face O-Ring Swivel - 45 Bent Tube (MegaCrimp)

Robust "bite-the-wire" crimp
Robust “bite-the-wire” crimp
Tested to an industry-leading 1,000,000 impulse cycles
Simplifies inventory management
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard

GATES G25235-0606 Specifications

Coupling Description	MegaCrimp Female Flat-Face O-Ring Swivel - 45 Bent Tube
Industrial Description	6G-6FFORX45S
Thread Size	11/16-16
Inside Diameter	.375 IN
Hydraulic Hose Recommendation	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Nut Hex Size	22 MM
Drop Length	.43 IN
Cut-Off Length	1.65 IN
Length	2.75 IN
Seal Type	O-Ring
O-Ring Location	Flat Face O-Ring
Gender	Female
Bent Tube Angle	45
Swivel	Yes
Bulkhead	No
Inside Diameter	9.5 MM
Drop Length	11 MM
Cut-Off Length	41.9 MM
Length	69.8 MM

Harmonized Tariff Code (Schedule B)	8412909015
Country of Origin (Primary)	US
UPC	00072053404067
VMRS Code	059032012
UNSPSC	31163000
