GATES G25230-0806 Part Description
Manufacturer
Product Description

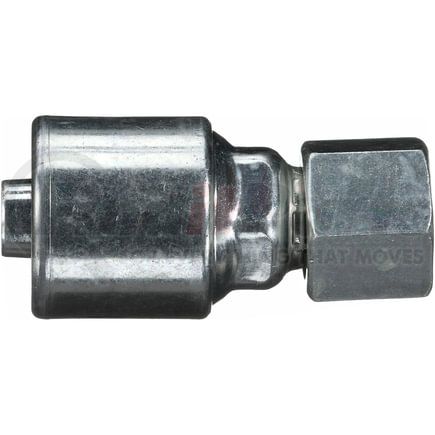

Female Flat-Face O-Ring Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25230-0806 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel |
| Industrial Description | 8G-6FFORX |
| Thread Size | 11/16-16 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 22 MM |
| Nut Hex Size | 22 MM |
| Cut-Off Length | 2.3 IN |
| Length | 3.78 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 58.4 MM |
| Length | 95.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053408614 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25230-0806 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA6FR8 |
| Parker | 1JC43-06-08, 1JC43-6-8-SM, 1JS43-06-08, 1JSHY-6-8 |
| Dayco | 108715 |
| Weatherhead | 08US66, 08ZS66 |
| Goodyear | 13700-0806, 14700-0806, B2-OFFX-0806, UC-OFFX-0806 |
| NAPA | G25230-0806 |
| Kurt Hydraulics | FFX-08-06 |
