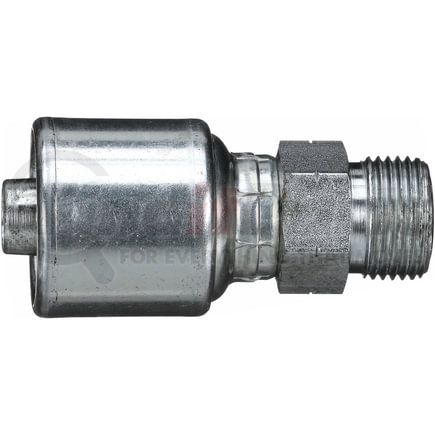

GATES G25225-1012 Part Description
Manufacturer
Product Description
Male Flat-Face O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25225-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Flat-Face O-Ring |
| Industrial Description | 10G-12MFFOR |
| Thread Size | 1 3/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 32 MM |
| Cut-Off Length | 1.56 IN |
| Length | 3.03 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Bulkhead | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 39.5 MM |
| Length | 77 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053408584 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25225-1012 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 108100A, 108102A |
| Goodyear | 14730-1012, B2-OFM-1012 |
| Kurt Hydraulics | MF-10-12 |
| NAPA | G25225-1012 |
| Parker | 1J043-12-10, 1J0HY-12-10 |
| Weatherhead | 10UE72, 10ZE72 |
