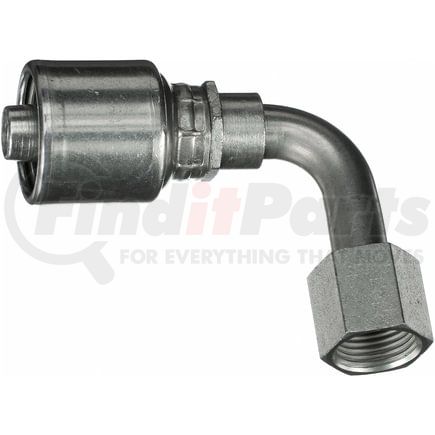

(888) 312-8812 Login SignupGATES G25205-0404 Female SAE 45 Flare Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
SHIPS TODAY
$3049
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G25205-0404 Part Description
Manufacturer
Product Description
Female SAE 45 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25205-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female SAE 45 Flare Swivel - 90 Bent Tube |
| Industrial Description | 4G-4FSX90 |
| Thread Size | 7/16-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .5625 IN |
| Drop Length | 1.24 IN |
| Cut-Off Length | 1.02 IN |
| Length | 2.05 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 45 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Drop Length | 31.5 MM |
| Cut-Off Length | 26 MM |
| Length | 52 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053408461 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25205-0404 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 108390 |
| NAPA | G25205-0404 |
