GATES G25172-1012 Part Description
Manufacturer
Product Description

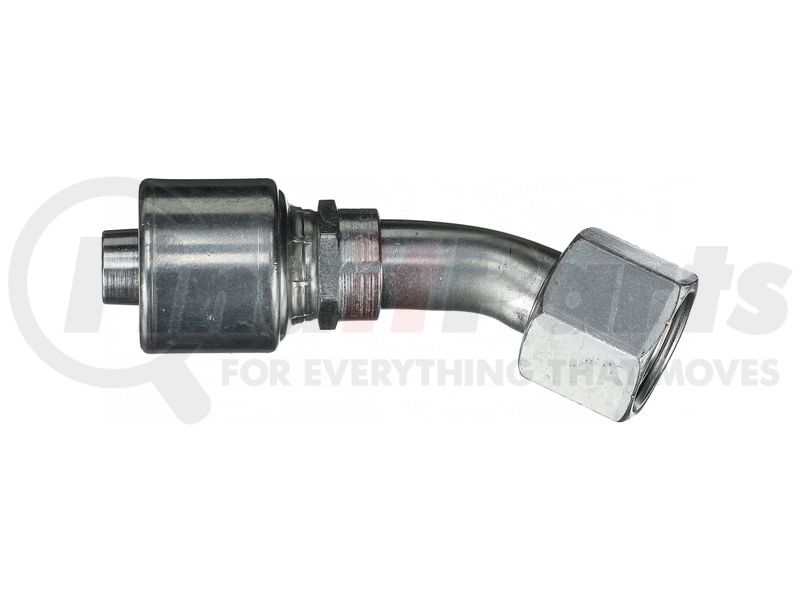

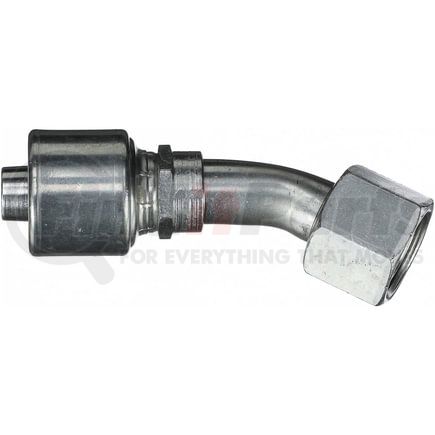

Female JIC 37 Flare Swivel - 30 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25172-1012 Specifications
Product Attributes

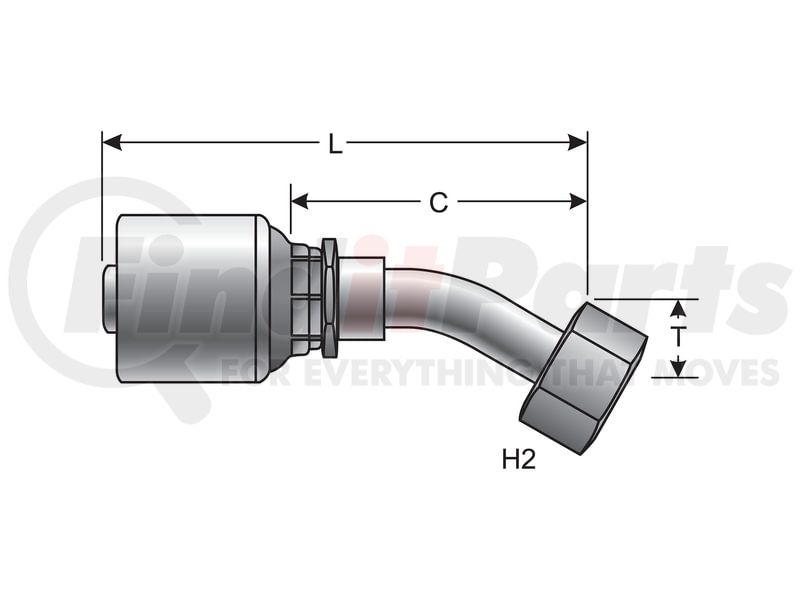

| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 30 Bent Tube |
| Industrial Description | 10G-12FJX30-018 |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 32 MM |
| Drop Length | .71 IN |
| Cut-Off Length | 2.95 IN |
| Length | 4.43 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 30 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Drop Length | 18 MM |
| Cut-Off Length | 74.9 MM |
| Length | 112.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053777031 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25172-1012 Part Interchanges
| Brand | Part Number |
|---|---|
| Weatherhead | 10UL22, 10ZL22 |
| NAPA | G25172-1012 |
