GATES G25170-1612 Part Description
Manufacturer
Product Description

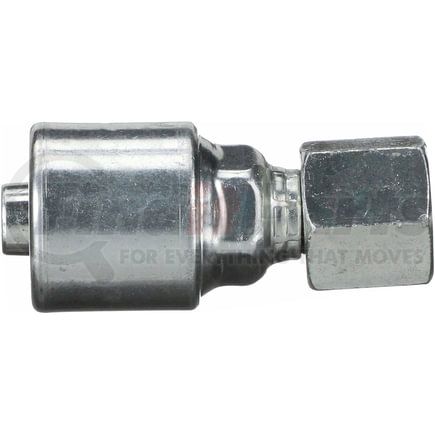

Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25170-1612 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 16G-12FJXSP |
| Thread Size | 1 1/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 36 MM |
| Nut Hex Size | 32 MM |
| Cut-Off Length | 1.78 IN |
| Length | 4.02 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 45.2 MM |
| Length | 102 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053171839 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25170-1612 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA12FJ16 |
| Parker | 10643-12-16, 106HY-12-16 |
| Dayco | 108089 |
| Weatherhead | 16U612, 16Z612 |
| Caterpillar | 124-1972 |
| Goodyear | 14400-1612, B2-JCFX-1612 |
| NAPA | G25170-1612 |
| Kurt Hydraulics | FJX-16-12 |
