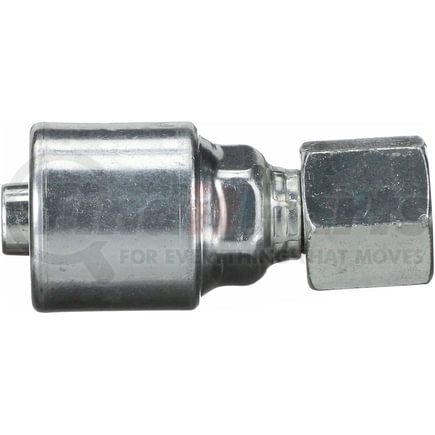

(888) 312-8812 Login SignupGATES G25170-0605 Female JIC 37 Flare Swivel (MegaCrimp)
Tap to view 3 more
$3199
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
GATES G25170-0605 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25170-0605 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 6G-5FJXSP |
| Thread Size | 1/2-20 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 17 MM |
| Nut Hex Size | 17 MM |
| Cut-Off Length | 1.17 IN |
| Length | 2.27 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 29.8 MM |
| Length | 57.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053284836 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
