GATES G25165-0810 Part Description
Manufacturer
Product Description

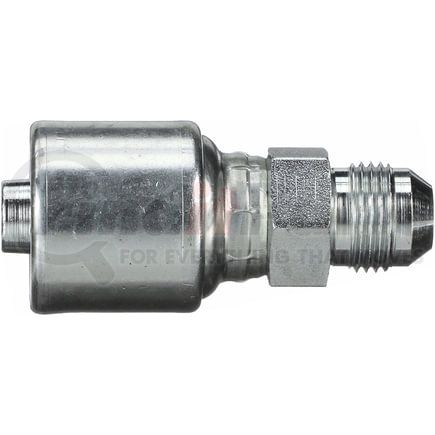

Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-0810 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 8G-10MJ |
| Thread Size | 7/8-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 24 MM |
| Cut-Off Length | 1.44 IN |
| Length | 2.91 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 36.5 MM |
| Length | 74 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053322972 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-0810 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA10MJ8, FJ9125-1008S |
| Caterpillar | 124-1944 |
| Dayco | 108219, 108219BK, HY08-10MJ, DC08-10MJ |
| Eaton | 08Z-510 |
| Goodyear | 13450-0810, 14450-0810, B2-JCM-0810, T7-JCM-0810, T8-JCM-0810 |
| Hydraulink | S18-1408 |
| Kurt Hydraulics | MJ-08-10 |
| N/A | 04031842, KMJ0810, E08-10MJ, C12212510-0810, 208-1J-510, M12510-08-10 |
| NAPA | G25165-0810 |
| Parker | 10343-10-08, 10343-10-8, 103HY-10-8 |
| Weatherhead | 08E510, 08EE510, 08U510, 08Z510, 33608E-510, 33608E510, 3903-08510, 08U-510, 08E-510, 08W-510 |
