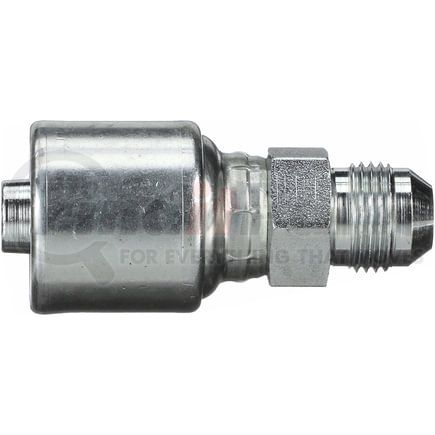

GATES G25165-0808 Part Description
Manufacturer
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-0808 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 8G-8MJ |
| Thread Size | 3/4-16 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 22 MM |
| Cut-Off Length | 1.34 IN |
| Length | 2.81 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 34 MM |
| Length | 71.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053322965 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-0808 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA8MJ8, FJ9125-0808S |
| Caterpillar | 124-1943 |
| Dayco | 108218, 108218BK, HY08-08MJ, DC08-08MJ |
| Eaton | 08Z-508, 4TA8MJ8 |
| Goodyear | 13450-0808, 14450-0808, B2-JCM-0808, T8-JCM-0808 |
| Hydraulink | S18-1208 |
| Kurt Hydraulics | MJ-08-08 |
| N/A | T2030-0812, 04031840, KMJ0808, E08-08MJ, C12212510-0808, 208-1J-508, M12510-08-08, 410060-131280, T2030-0814, T203-0812 |
| NAPA | G25165-0808 |
| Parker | 10343-08-08, 10343-8-8, 103HY-8-8, 10356-8-8 |
| Weatherhead | 08E508, 08EE508, 08U508, 08Z508, 3903-08508, 08E-508, 08U-508, 08W-508 |
