(888) 312-8812 Login SignupGATES G25165-0608 6G-8MJ
Tap to view 3 more
$1649
Limited availability at this price!
In Stock
Get it by Friday, Feb 13

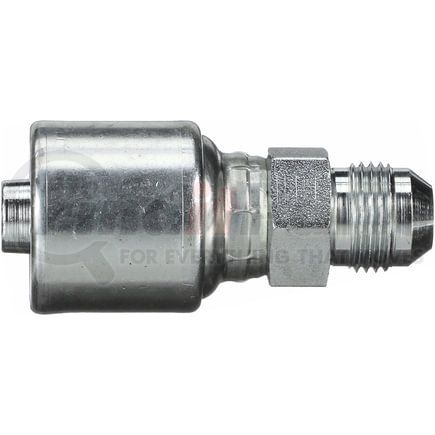

GATES G25165-0608 Part Description
Manufacturer
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-0608 Specifications
Product Attributes
| Cut-Off Length | 1.38 IN |
| Length | 2.48 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 6G-8MJ |
| Thread Size | 3/4-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 19 MM |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 35.1 MM |
| Length | 63 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053322958 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-0608 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA8MJ6, FJ9125-0806S |
| Caterpillar | 124-1941 |
| Dayco | 108216, 108217, 151216, DC06-08MJ, HY06-08MJ |
| Eaton | 06Z-508 |
| Goodyear | 13450-0608, 14450-0608, B2-JCM-0608, T8-JCM-0608 |
| Kurt Hydraulics | MJ-06-08 |
| N/A | 04031836, E06-08MJ, C12212510-0608, 206-1J-508, M12510-06-08, 2064J-506, 410058-131280 |
| NAPA | G25165-0608 |
| Parker | 10343-08-06, 10343-8-6, 103HY-8-6, 10356-8-6 |
| Weatherhead | 06E508, 06EE508, 06U508, 06Z508, 33606E-508, 33606E508, 33608E-508, 33608E508, 3903-06508, 06E-508, 06U-508, 06W-508 |
