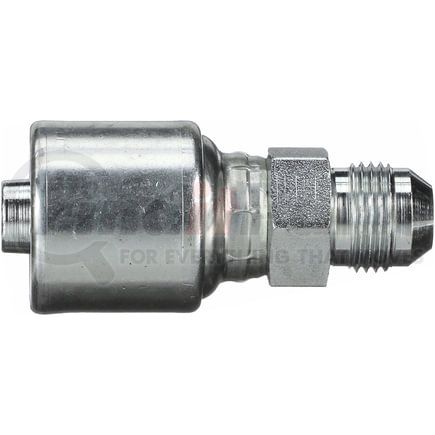

(888) 312-8812 Login SignupGATES G25165-0506 Male JIC 37 Flare (MegaCrimp)
Tap to view 3 more
$2449
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 14
GATES G25165-0506 Part Description
Manufacturer
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-0506 Specifications
Product Attributes
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 17 MM |
| Cut-Off Length | 1.16 IN |
| Length | 2.26 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 5G-6MJ |
| Thread Size | 9/16-18 |
| Inside Diameter | .3125 IN |
| Inside Diameter | 7.9 MM |
| Cut-Off Length | 29.5 MM |
| Length | 57.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053456356 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-0506 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 103HY-6-5 |
| Dayco | 108213 |
| Goodyear | 14450-0506, B2-JCM-0506 |
| NAPA | G25165-0506 |
| Kurt Hydraulics | MJ-05-06 |
