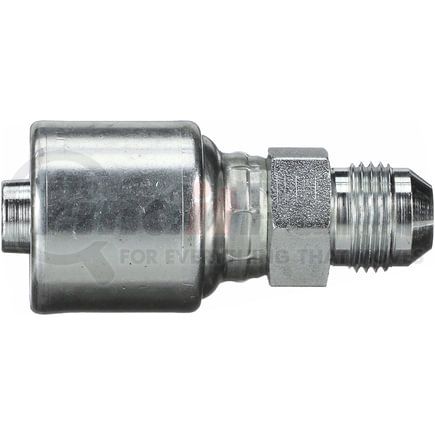

GATES G25165-0404 Part Description
Manufacturer
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 4G-4MJ |
| Thread Size | 7/16-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 14 MM |
| Cut-Off Length | 1.16 IN |
| Length | 2.19 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 29.5 MM |
| Length | 55.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053322927 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-0404 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4MJ4, FJ9125-0404S |
| Parker | 10343-04-04, 10343-4-4, 103HY-4-4 |
| Dayco | 100839, 108210, 151210 |
| Weatherhead | 04E504, 04EE504, 04U504, 04Z504 |
| Caterpillar | 124-1936 |
| Goodyear | 13450-0404, 14450-0404, 36450-0404, B2-JCM-0404, T8-JCM-0404 |
| NAPA | G25165-0404 |
| Kurt Hydraulics | MJ-04-04 |
| Hydraulink | S18-0704 |
