GATES G25111-0404 Part Description
Manufacturer
Product Description

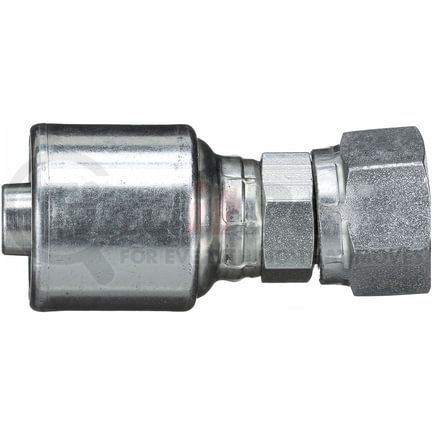

Female Pipe Swivel (NPSM - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25111-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Pipe Swivel (NPSM - 30 Cone Seat) |
| Industrial Description | 4G-4FPX |
| Thread Size | 1/4-18 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .5 IN |
| Nut Hex Size | .6875 IN |
| Cut-Off Length | 1.22 IN |
| Length | 2.24 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 30.9 MM |
| Length | 56.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053322880 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25111-0404 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4PF4 |
| Parker | 10743-04-04, 10743-4-4, 107HY-4-4 |
| Dayco | 108111, 151111 |
| Weatherhead | 04M054, 04U054, 04U254, 04Z054, 04Z254 |
| Goodyear | 13655-0404, 14655-0404, B2-NSFX-0404 |
| NAPA | G25111-0404 |
| Kurt Hydraulics | FPX-04-04 |
