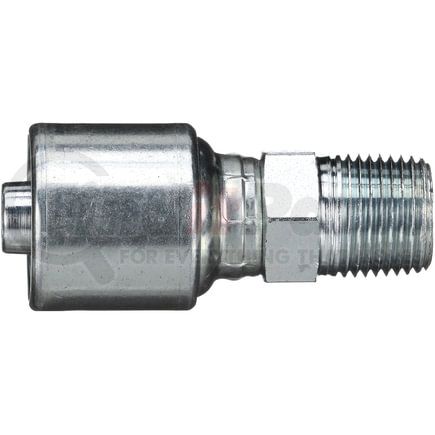

Gates G25100-0808 - Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
$949
MSRP: $10.22
Save: $0.73
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 8G-8MP |
| Thread Size | 1/2-14 |
| Inside Diameter | .5 IN |
| 9952 | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| 9924 | .875 IN |
| 9929 | 1.4 IN |
| Length | 2.87 IN |
| Seal Type | Thread Interference/Mated Angle |
| 9955 | Inverted |
| 9913 | 60 |
| 9935 | 30 |
| Gender | Male |
| 9934 | Straight |
| Swivel | No |
| Inside Diameter | 12.7 MM |
| 9929 | 35.5 MM |
| Length | 73 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053322668 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1AA8MP8
- Aeroquip 1GA8MP8
- Aeroquip FJ9121-0808S
- Parker 10143-08-08
- Parker 10143-8-8
- Parker 101HY-8-8
- Dayco 100886
- Dayco 108249
- Dayco 108249BK
- Dayco 151249
- Weatherhead 08E108
- Weatherhead 08EE108
- Weatherhead 08S108
- Weatherhead 08U108
- Weatherhead 08Z108
- Weatherhead 26508P108
- Weatherhead 33808P108
- Caterpillar 124-1900
- Goodyear 13615-0808
- Goodyear 14615-0808
- Goodyear 36615-0808
- Goodyear B2-NPM-0808
- Goodyear T8-NPM-0808
- NAPA G25100-0808
- Kurt Hydraulics MP-8-8
