GATES G25100-0608 Part Description
Manufacturer
Product Description

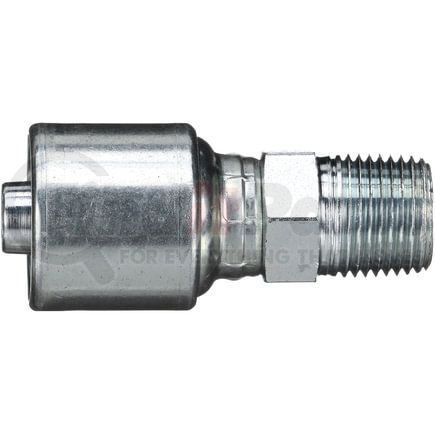

Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25100-0608 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 6G-8MP |
| Thread Size | 1/2-14 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .875 IN |
| Cut-Off Length | 1.42 IN |
| Length | 2.51 IN |
| Seal Type | Thread Interference/Mated Angle |
| Nose Seat Type | Inverted |
| Thread Angle | 60 |
| Mating Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 36.1 MM |
| Length | 63.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053322644 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25100-0608 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA8MP6, FJ9121-0806S |
| Caterpillar | 124-1898, 9X-3912 |
| Dayco | 100883, 108247, 108247BK, 108253, 151247, HY06-08MP, DC06-08MP |
| Eaton | 06Z-108 |
| Goodyear | 13615-0608, 14615-0608, B2-NPM-0608, T8-NPM-0608 |
| Kurt Hydraulics | MP-6-8 |
| N/A | 04031654, KMP0608, C12212810-0608, 206-11-108, M12810-06-08, 410006-131280, 206-1J-108 |
| NAPA | G25100-0608 |
| Parker | 10143-08-06, 10143-8-6, 101HY-8-6, 10156-8-6 |
| Weatherhead | 06E108, 06EE108, 06U108, 06Z108, 33806P108, 6E-108, 8E108, 33806P-108, 3903-06108, 06E-108, 06W-108, 06U-108 |
