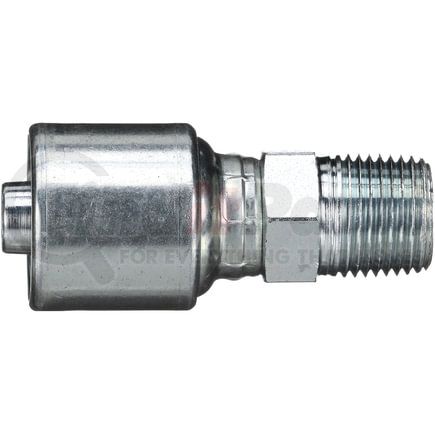

(888) 312-8812 Login SignupGATES G25100-0408 CL12-4G-8MP
Tap to view 3 more
$799
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 14
GATES G25100-0408 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25100-0408 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 4G-8MP |
| Thread Size | 1/2-14 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .875 IN |
| Cut-Off Length | 1.42 IN |
| Length | 2.44 IN |
| Seal Type | Thread Interference/Mated Angle |
| Nose Seat Type | Inverted |
| Thread Angle | 60 |
| Mating Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 36 MM |
| Length | 62 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053407884 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25100-0408 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 10143-08-04, 10143-8-4, 101HY-8-4 |
| Dayco | 108244, 151244 |
| Weatherhead | 04U108, 04Z108 |
| Caterpillar | 124-1894 |
| Goodyear | 13615-0408, 14615-0408, B2-NPM-0408, T7-NPM-0408, T8-NPM-0408 |
| NAPA | G25100-0408 |
| Kurt Hydraulics | MP-4-8 |
