GATES G20832-0606 Part Description
Manufacturer
Product Description

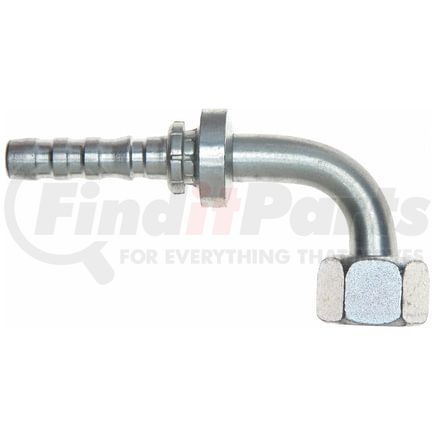

Female British Std Parallel Pipe O-Ring Swivel-90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20832-0606 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 6GS-6FBSPORX90 |
| Thread Size | 3/8-19 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 22 MM |
| Drop Length | 1.26 IN |
| Cut-Off Length | 1.66 IN |
| Length | 3.07 IN |
| Inside Diameter | 9.5 MM |
| Drop Length | 32 MM |
| Cut-Off Length | 42.2 MM |
| Length | 78 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053571912 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20832-0606 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 101686 |
| Goodyear | 29120-0606 |
| NAPA | G20832-0606 |
