GATES G20830-2020 Part Description
Manufacturer
Product Description

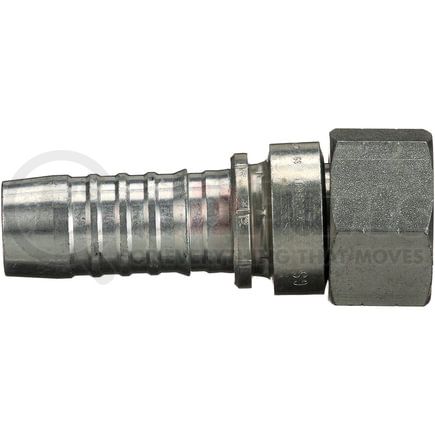

Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20830-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel |
| Industrial Description | 20GS-20FBSPORX |
| Thread Size | 1 1/4-11 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 1.79 IN |
| Length | 4.59 IN |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 45.4 MM |
| Length | 116.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053510508 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20830-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4S20BF20 |
| Continental Belt | S6-BPFX-2020 |
| Dayco | 101659 |
| Goodyear | 28105-2020, S4-BPFX-2020 |
| Kurt Hydraulics | F-BSPX-20-20-W |
| N/A | T7020-2020, 04031270, 4048-2020, M80812-20-20 |
| NAPA | G20830-2020 |
| Parker | 1GU71-20-20 |
| Weatherhead | 43020E370, 43020U370, 47020E370, 47020EE370, 4SP20W370 |
