(888) 312-8812 Login SignupGATES G20720-0614 Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral)
Tap to view 3 more
$5449
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 24
GATES G20720-0614 Part Description
Manufacturer
Product Description

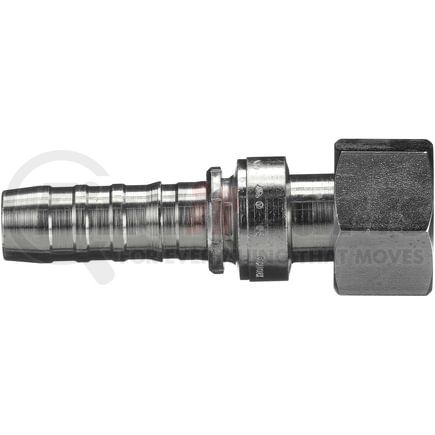

Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20720-0614 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Industrial Description | 6GS-14FDHORX |
| Thread Size | M22X1.5 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 14 MM |
| Nut Hex Size | 27 MM |
| Cut-Off Length | 1.56 IN |
| Length | 2.97 IN |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 39.7 MM |
| Length | 75.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053437928 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20720-0614 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4S10DS6 |
| Dayco | 101720 |
| Goodyear | 28210-0622, S4-DHFX-0622 |
| Kurt Hydraulics | F-DH06-14-22-W |
| N/A | 04031222 |
| NAPA | G20720-0614 |
| Parker | 1C971-14-06, 1C971-14-6 |
