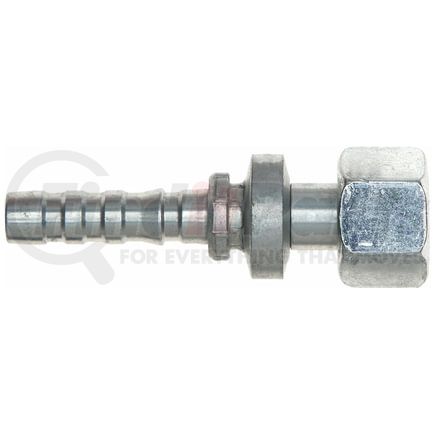

(888) 312-8812 Login SignupGATES G20645-1628 Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
Tap to view 2 more
$10249
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 14
GATES G20645-1628 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20645-1628 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 16GS-28FDLORX |
| Thread Size | M36X2.0 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 28 MM |
| Nut Hex Size | 41 MM |
| Cut-Off Length | 1.91 IN |
| Length | 4.13 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 48.6 MM |
| Length | 104.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053443752 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20645-1628 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 101711 |
| Goodyear | 28240-1636 |
| NAPA | G20645-1628 |
