(888) 312-8812 Login SignupGATES G20400-1212 Caterpillar Style O-Ring Flange (GlobalSpiral)
Tap to view 2 more
$6499
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G20400-1212 Part Description
Manufacturer
Product Description

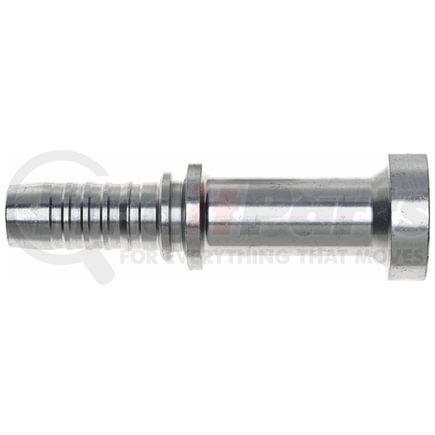

Caterpillar Style O-Ring Flange (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20400-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Caterpillar Style O-Ring Flange |
| Industrial Description | 12GS-12FLC |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Thickness | .56 in |
| Flange Diameter | 1.63 IN |
| Cut-Off Length | 3.7 IN |
| Length | 5.71 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 14.2 MM |
| Flange Diameter | 41.4 MM |
| Cut-Off Length | 94 MM |
| Length | 145 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053399486 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20400-1212 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1E12CT12 |
| Parker | 1XA78-12-12 |
| Dayco | 101820, 101820U |
| Weatherhead | 57012SK12 |
| Goodyear | 28185-1212, 29185-1212, DG-CF-1212 |
| NAPA | G20400-1212 |
| Kurt Hydraulics | CAT-12-12-W, CAT-12-12-WHP |
