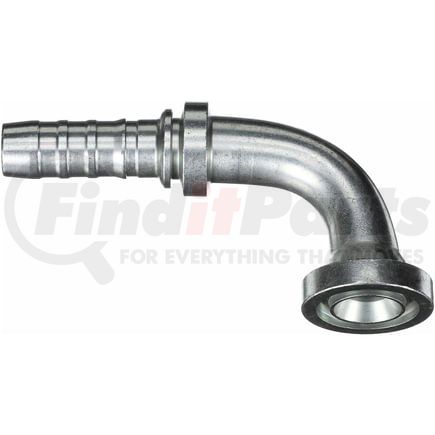

(888) 312-8812 Login SignupGATES G20366-1212 Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$11749
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
GATES G20366-1212 Part Description
Manufacturer
Product Description
Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20366-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Industrial Description | 12GS-12FLH90-100 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .35 in |
| Flange Diameter | 1.63 IN |
| Drop Length | 3.94 IN |
| Cut-Off Length | 2.4 IN |
| Length | 4.41 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 8.9 MM |
| Flange Diameter | 41.4 MM |
| Drop Length | 100.1 MM |
| Cut-Off Length | 61 MM |
| Length | 112 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053787559 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20366-1212 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G20366-1212 |
