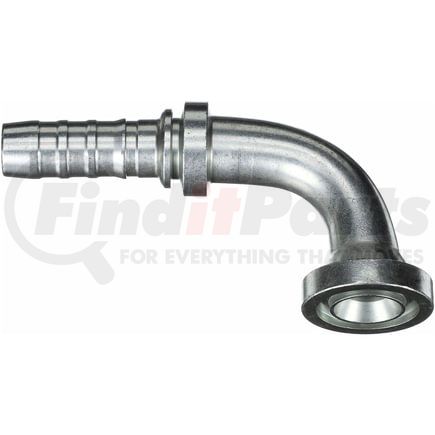

(888) 312-8812 Login SignupGATES G20365-1616 Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$9499
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
GATES G20365-1616 Part Description
Manufacturer
Product Description
Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20365-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Industrial Description | 16GS-16FLH90M |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .38 in |
| Flange Diameter | 1.88 IN |
| Drop Length | 2.76 IN |
| Cut-Off Length | 3.09 IN |
| Length | 5.31 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 47.8 MM |
| Drop Length | 70.1 MM |
| Cut-Off Length | 78.6 MM |
| Length | 134.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053297003 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20365-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B16FHB16, 1E16FHB16, 1E16FLB16, 1Z16FHB16, 1W16FHB16, 4S16FHB16, 6S16FHB16 |
| Dayco | 100625U, 102247, 1B16FHB16, FJ9796-1616S |
| Goodyear | 14315-1616, 28315-1616, 29315-1616, B2-FH90-1616, S6-FH90-1616 |
| N/A | 04031110, 4045-1616, 616-1W62-G76, 6045-1616 |
| NAPA | G20365-1616 |
| Parker | 16N71-16-16, 16N73-16-16, 16N79-16-16, 16N43-16-16, 16N77-16-16, 16N78-16-16 |
| Weatherhead | 43016ED76, 43016UD76, 47016ED76, 4SP16WD76, 47016E-D76, 43016E-D76, 43016U-D76 |
