GATES G20364-2020 Part Description
Manufacturer
Product Description

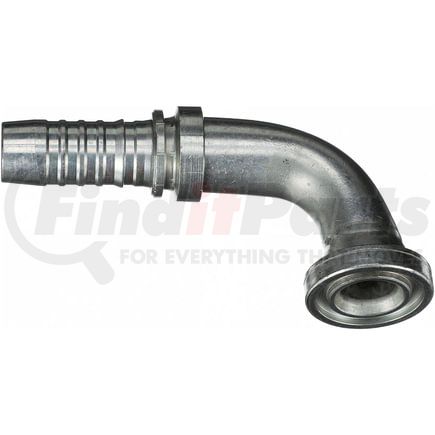

Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20364-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Industrial Description | 20GS-20FLH90-076 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .41 in |
| Flange Diameter | 2.13 IN |
| Drop Length | 2.99 IN |
| Cut-Off Length | 3.7 IN |
| Length | 6.5 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 10.4 MM |
| Flange Diameter | 54.1 MM |
| Drop Length | 76 MM |
| Cut-Off Length | 93.9 MM |
| Length | 165.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053474626 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20364-2020 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 100629, 102251 |
| NAPA | G20364-2020 |
