GATES G20315-2020 Part Description
Manufacturer
Product Description

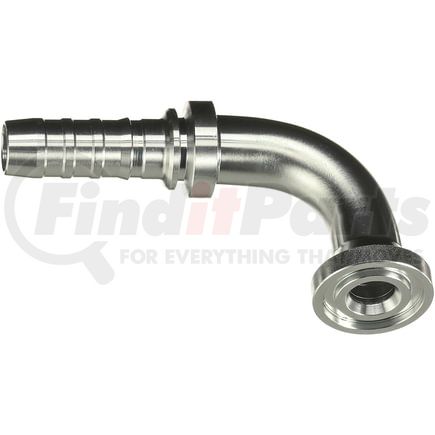

Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20315-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 20GS-20FL90M |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 4000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Drop Length | 3.54 IN |
| Cut-Off Length | 3.74 IN |
| Length | 6.5 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Drop Length | 89.9 MM |
| Cut-Off Length | 94.9 MM |
| Length | 165.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437775 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20315-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B20FLB20, 1E20FLB20, 4S20FLB20, 6S20FLB20 |
| Caterpillar | 5S-3811, 5S-3826, 5S-3832, 5S-3820 |
| Dayco | 100344, 100344U, 100351, 1B20FLB20 |
| Goodyear | 28350-2020, DG-FL90-2020, S4-FL90-2020 |
| N/A | 04031013, C12443390-2020, 4039-2020, 620-1WS-G80, 6204W-G80, 6039-2020 |
| NAPA | G20315-2020 |
| Parker | 14N73-20-20, 14N78-20-20, 11971-20-20, 11977-20-20, 14N77-20-20 |
| Weatherhead | 43020EG80L40, 43020EG84L46, 43020UG80L40, 43020UG84L46, 47020EEG80, 47020EG80, 4SP20WG80, 6SP20WG80, 43020E-G80L40, 43020U-G80L40, 43020U-G84L46, 43020E-G84L46 |
