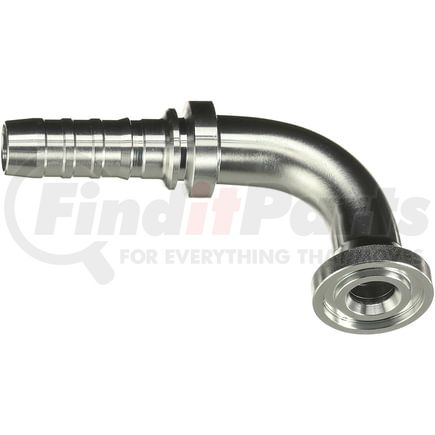

(888) 312-8812 Login SignupGATES G20315-0808 Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
MSRP: $46.34
$4349
Save $2.85
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G20315-0808 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20315-0808 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 8GS-8FL90M |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .27 in |
| Flange Diameter | 1.19 IN |
| Drop Length | 1.57 IN |
| Cut-Off Length | 1.99 IN |
| Length | 3.46 IN |
| Inside Diameter | 12.7 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 30.2 MM |
| Drop Length | 39.9 MM |
| Cut-Off Length | 50.5 MM |
| Length | 87.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053302547 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20315-0808 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 11970-8-8, 11971-08-08, 11971-8-8 |
| Dayco | 1B8FLB8 |
| Weatherhead | 43008EG71, 43008EG71L32, 43008UG71, 43008UG71L32, 47008EEG71, 47008EG71 |
| Goodyear | 28350-0808, 29350-0808, S4-FL90-0808 |
| NAPA | G20315-0808 |
